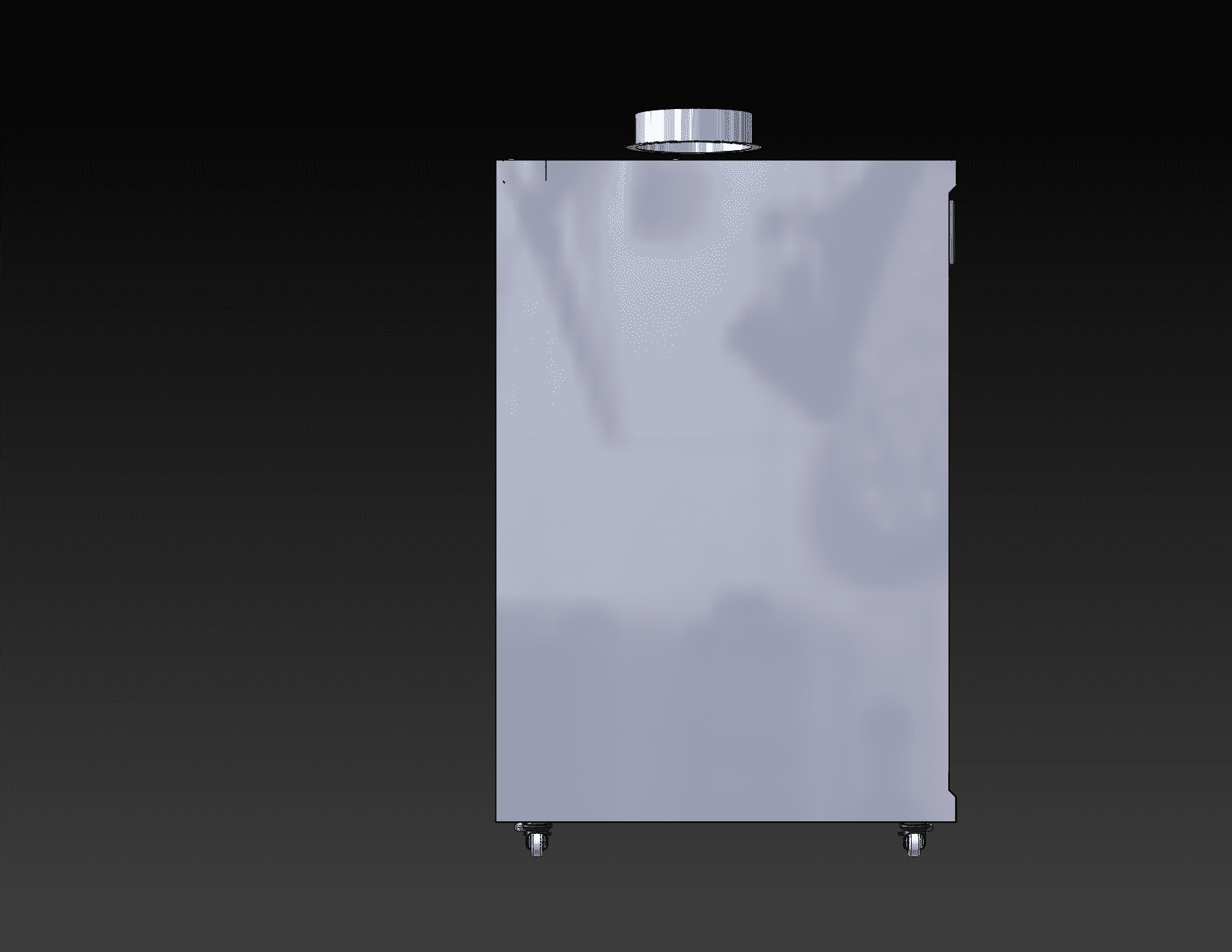

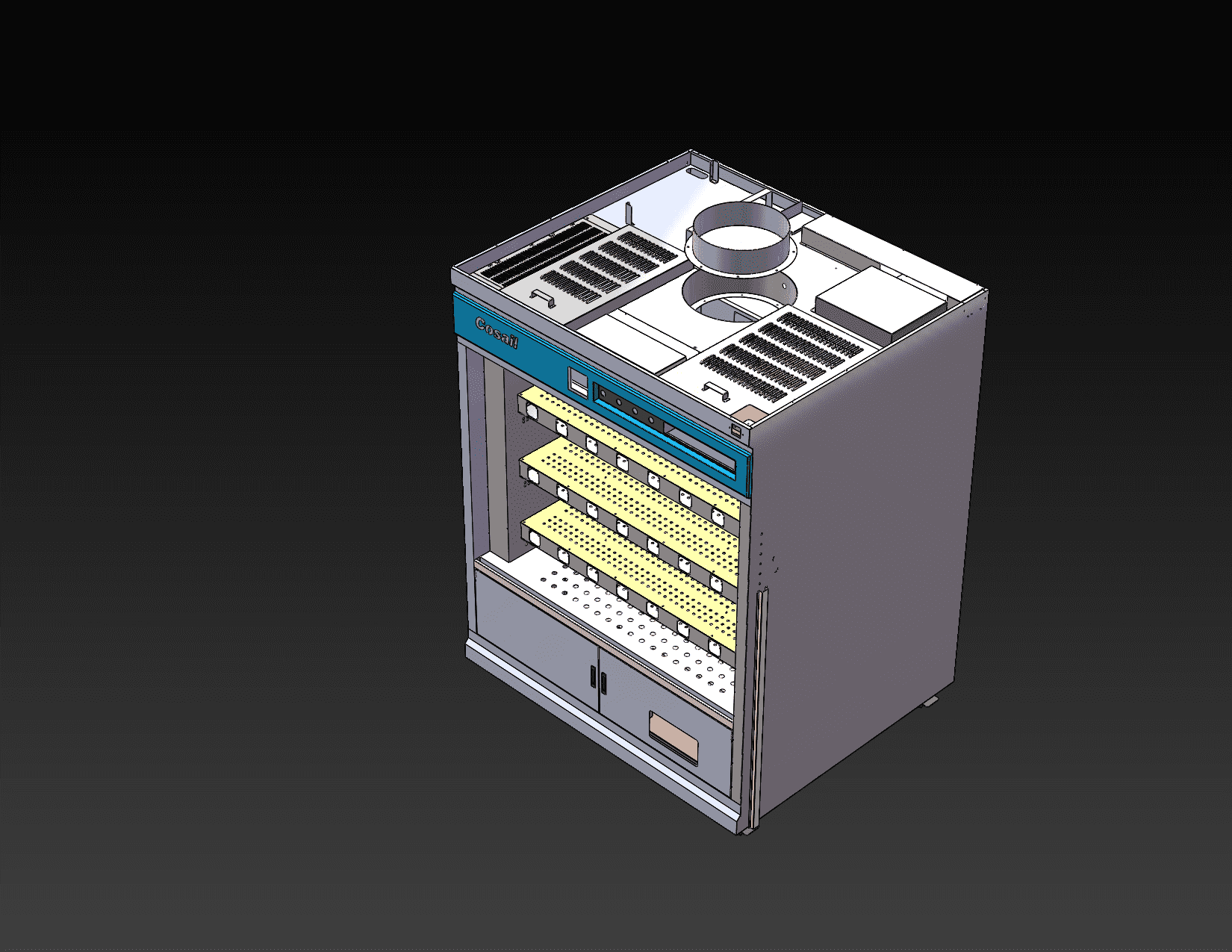

The main visuals prioritize 3D models or structural renders so buyers can quickly understand the cabinet form and layout.
Aging & Reliability Testing
Wide-Body Aging Cabinet
Designed for medium-to-large product aging tests, this cabinet combines a wide-body layout, single-side airflow, and three flip-up operating shelves for easier loading and maintenance.
Key Features
- Single-side airflow structure
- Three flip-up epoxy shelves
- Front PCB mounting holes on each level
- Heavy-duty locking casters and leveling feet
- Supports multiple threaded hole sizes
- Suitable for electronic product aging tests
Specifications
Technical Details
| Dimensions | 1500 x 1280 x 1950 mm (with casters) |
| Materials | Cold-rolled steel / 1.5 mm epoxy board / acrylic / stainless mesh |
| Surface Finish | Gloss ripple powder coating, dual-color finish |
| Structure | Wide-body single-side airflow cabinet |
| Installation | 8 front PCB holes per shelf, heavy-duty 3-inch casters |
| Customization | M3-M6 formed threads and custom positioning holes |
| Application | Electronic product aging tests |
Process Reference
Representative Real-World Photos
These photos show similar cabinet workmanship, coating, assembly, and delivery quality. They are reference images and may not map 1:1 to the current 3D model.
