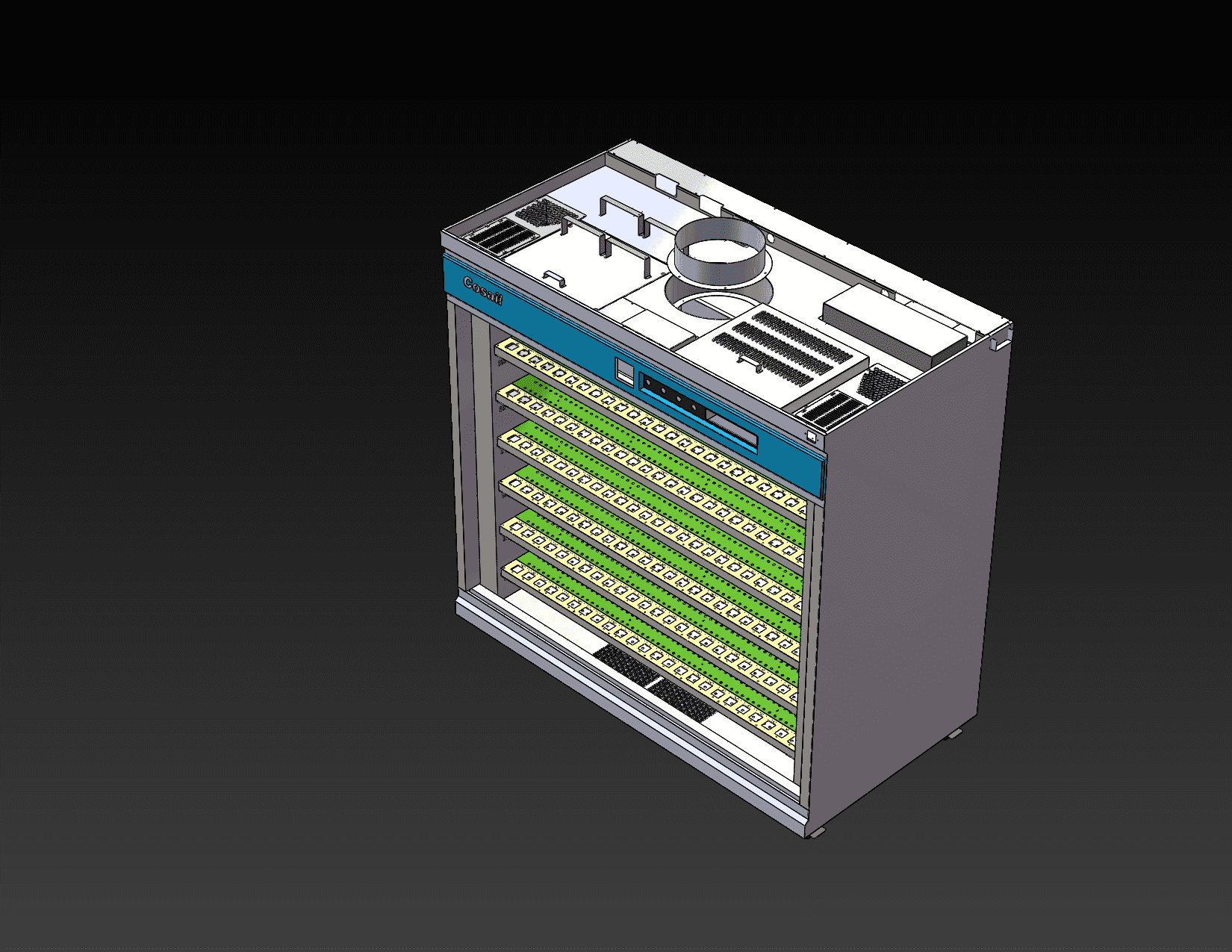

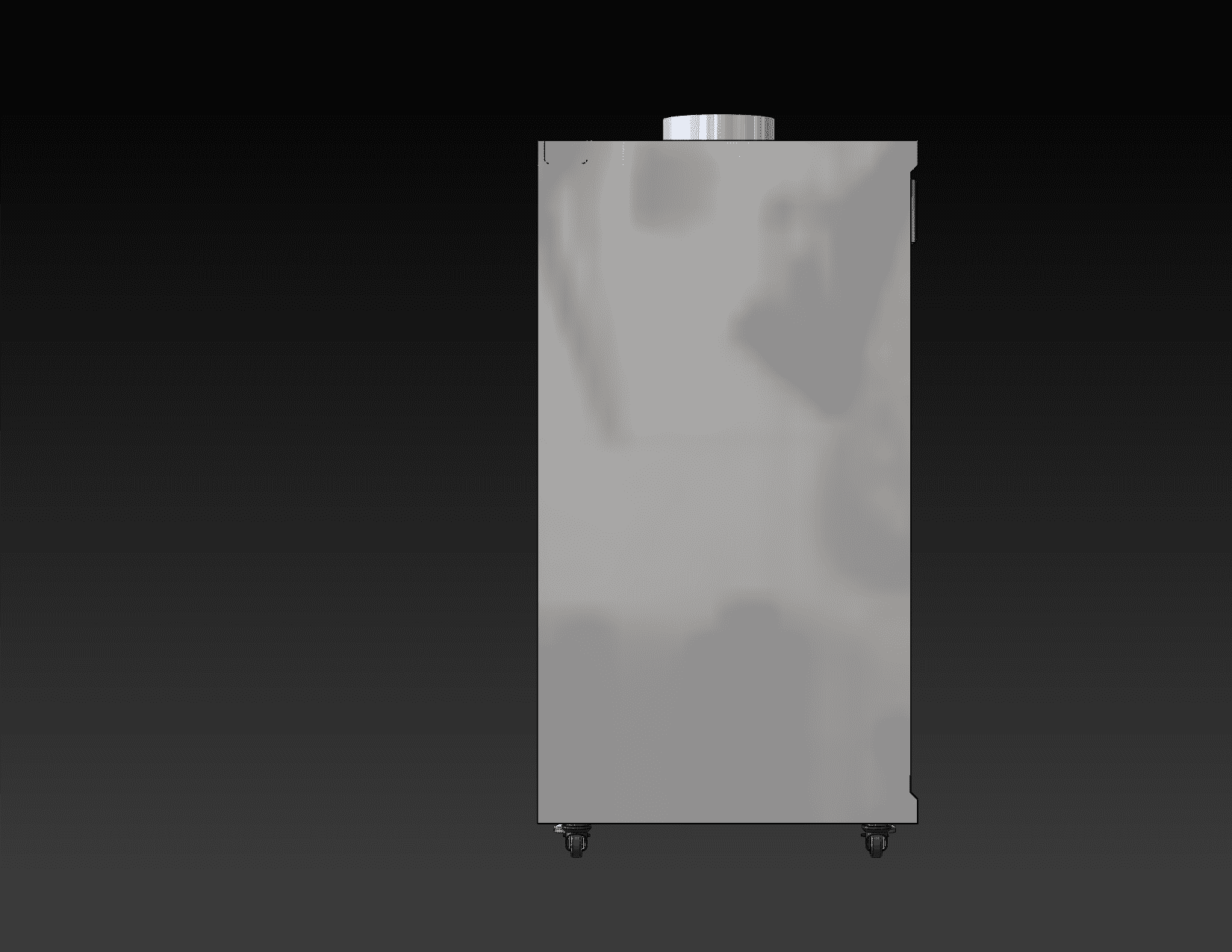

The main visuals prioritize 3D models or structural renders so buyers can quickly understand the cabinet form and layout.
Aging & Reliability Testing
High-Density Aging Cabinet
Built for high-density test layouts, this cabinet uses six flip-up shelves, dense interface allocation on each level, and anti-static as well as dustproof details for frequent production-side testing.
Key Features
- Six flip-up epoxy shelves
- High-density interface layout on each level
- Bottom stainless dustproof mesh
- Movable mounting plate included
- Anti-static covering on shelf surfaces
- Suitable for dense power-interface aging tests
Specifications
Technical Details
| Dimensions | 2050 x 1080 x 2050 mm (with casters) |
| Materials | Cold-rolled steel / stainless mesh / acrylic / 1.5 mm epoxy board |
| Surface Finish | Gloss ripple powder coating, dual-color finish |
| Protection | Bottom 4-mesh stainless dust screen |
| Structure | Six-layer flip-shelf structure |
| Installation | 24 interface positions per layer with movable mounting plate |
| Application | High-density power interface aging tests |
Process Reference
Representative Real-World Photos
These photos show similar cabinet workmanship, coating, assembly, and delivery quality. They are reference images and may not map 1:1 to the current 3D model.
