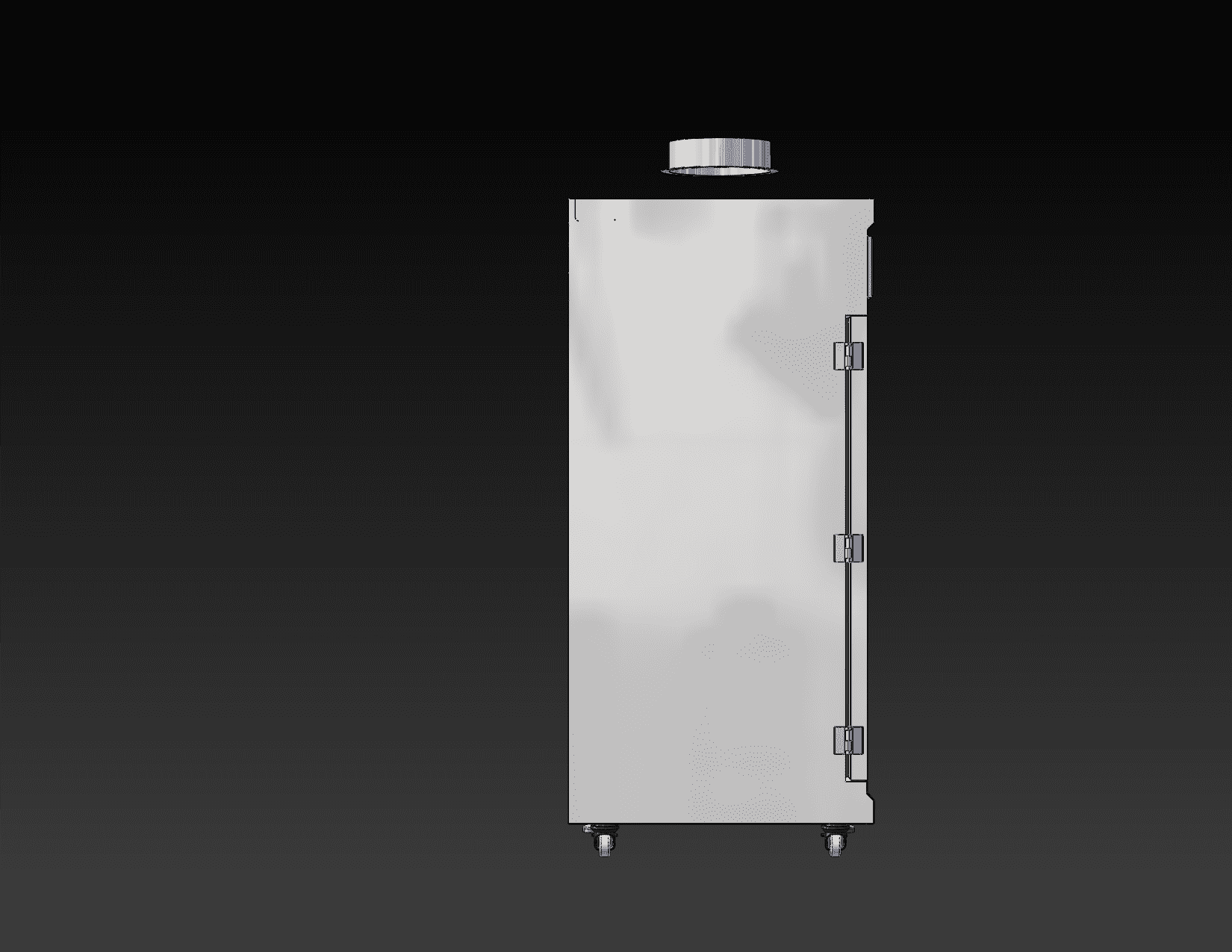

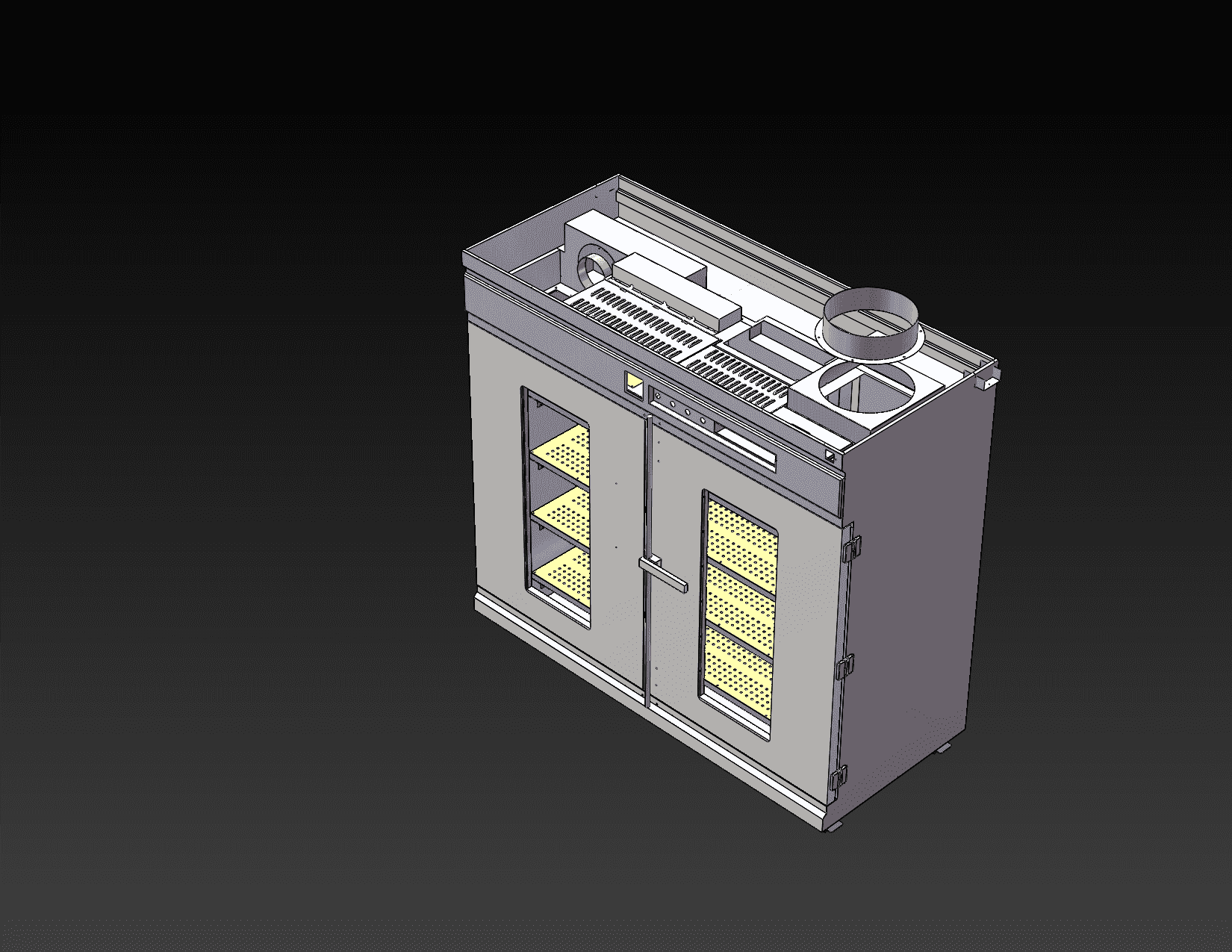

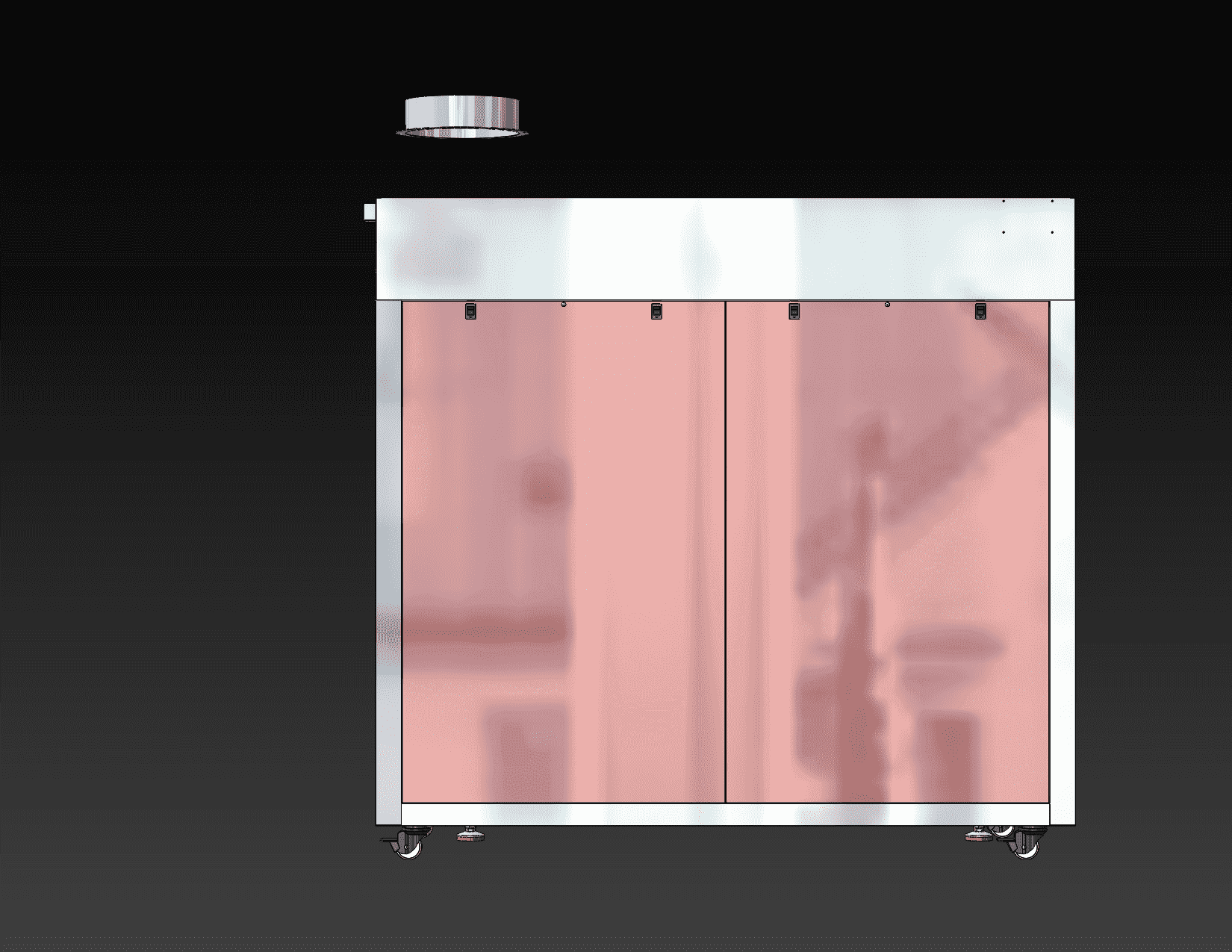

The main visuals prioritize 3D models or structural renders so buyers can quickly understand the cabinet form and layout.
Aging & Reliability Testing
High-Temperature Insulated Cabinet
Developed for high-temperature aging environments, this cabinet uses thickened air channels, insulated door cavities, compressed thermal insulation, and high-temperature sealing for better heat retention.
Key Features
- Hot-air circulation with top heating duct
- Thickened airflow and door cavity structure
- Compressed internal insulation filling
- High-temperature silicone sealing strip
- Four full flip-up epoxy shelves
- Suitable for high-temperature aging tests
Specifications
Technical Details
| Dimensions | 2050 x 900 x 1950 mm (with casters) |
| Materials | Cold-rolled steel / epoxy board / 0.8 mm aluminum / stainless mesh |
| Surface Finish | RAL9010 white ripple powder coating |
| Insulation | 32 mm air channels and door cavities with thermal insulation filling |
| Structure | High-temperature hot-air circulation cabinet, front door about 50 mm thick |
| Installation | L-shaped welded supports, stainless hinges, heavy-duty casters |
| Application | Electronic aging tests in high-temperature environments |
Process Reference

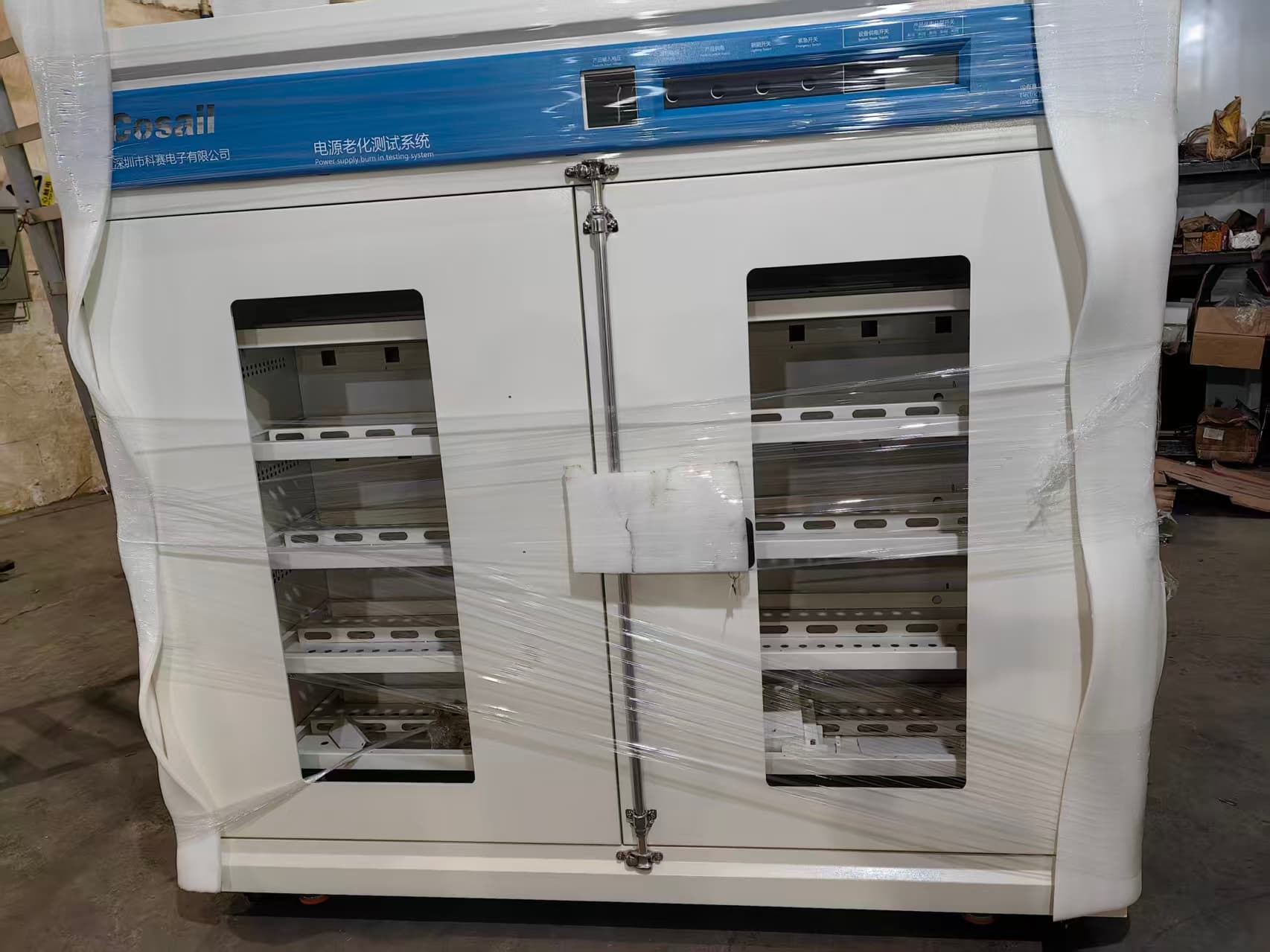

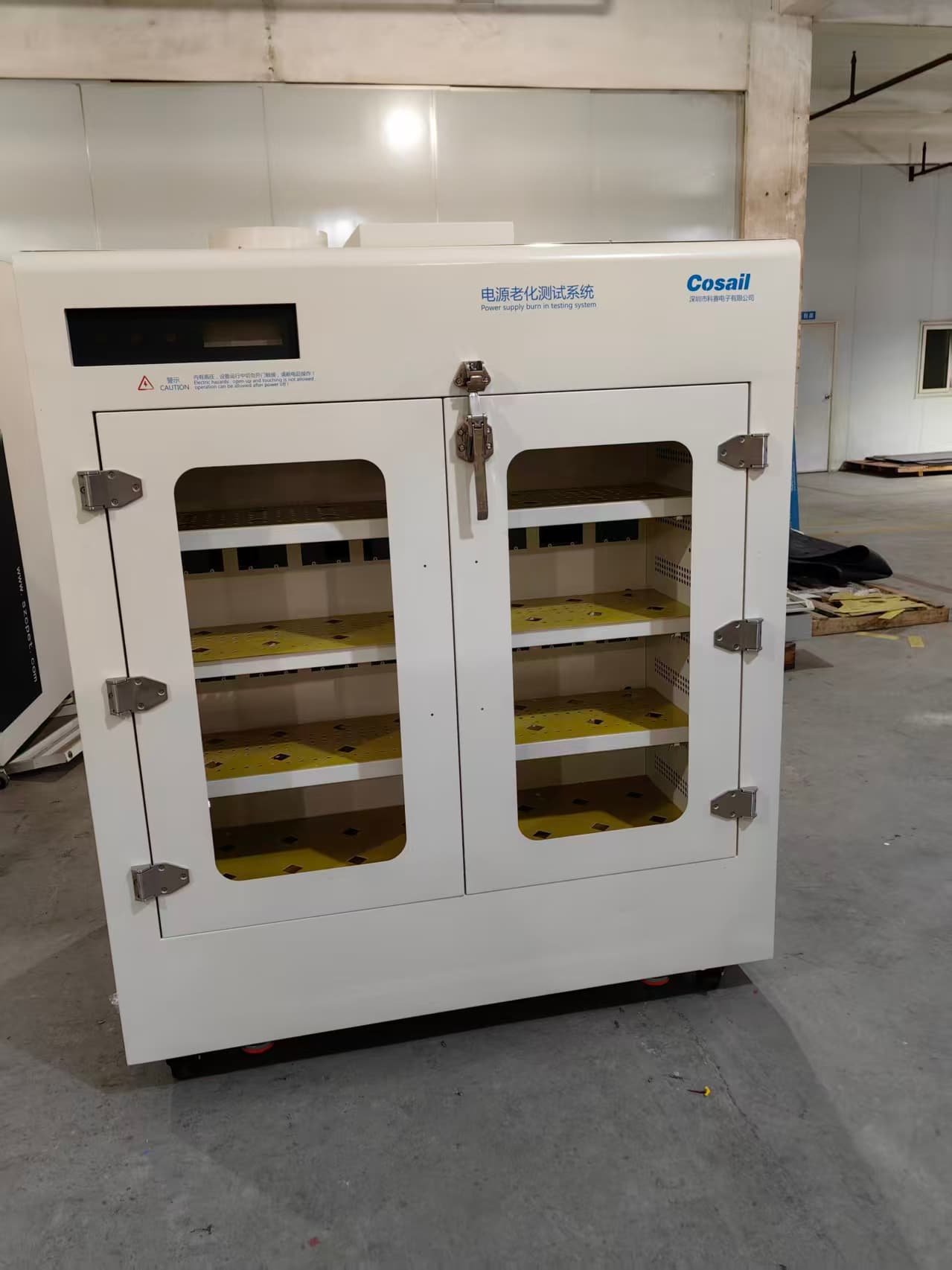

Representative Real-World Photos
These photos show similar cabinet workmanship, coating, assembly, and delivery quality. They are reference images and may not map 1:1 to the current 3D model.
