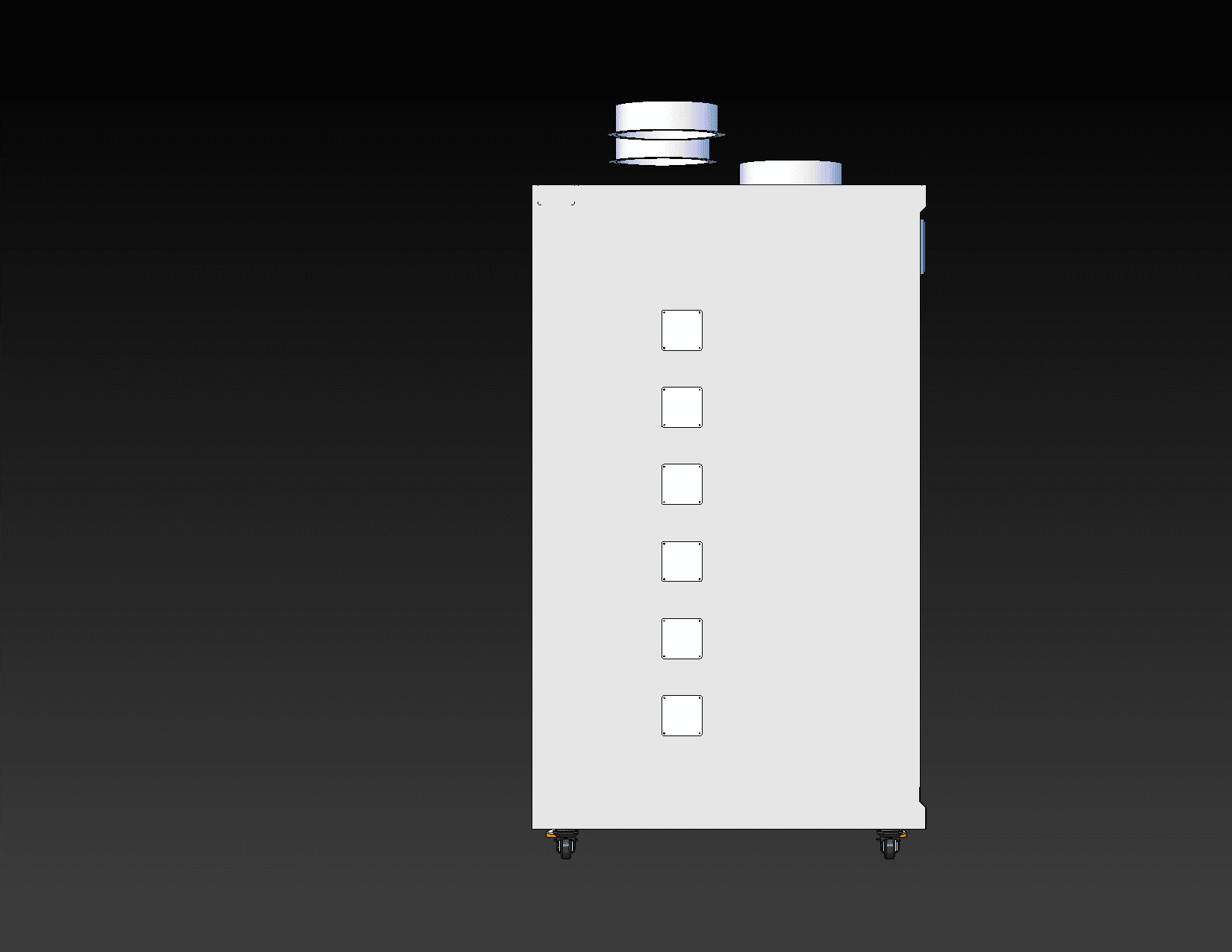

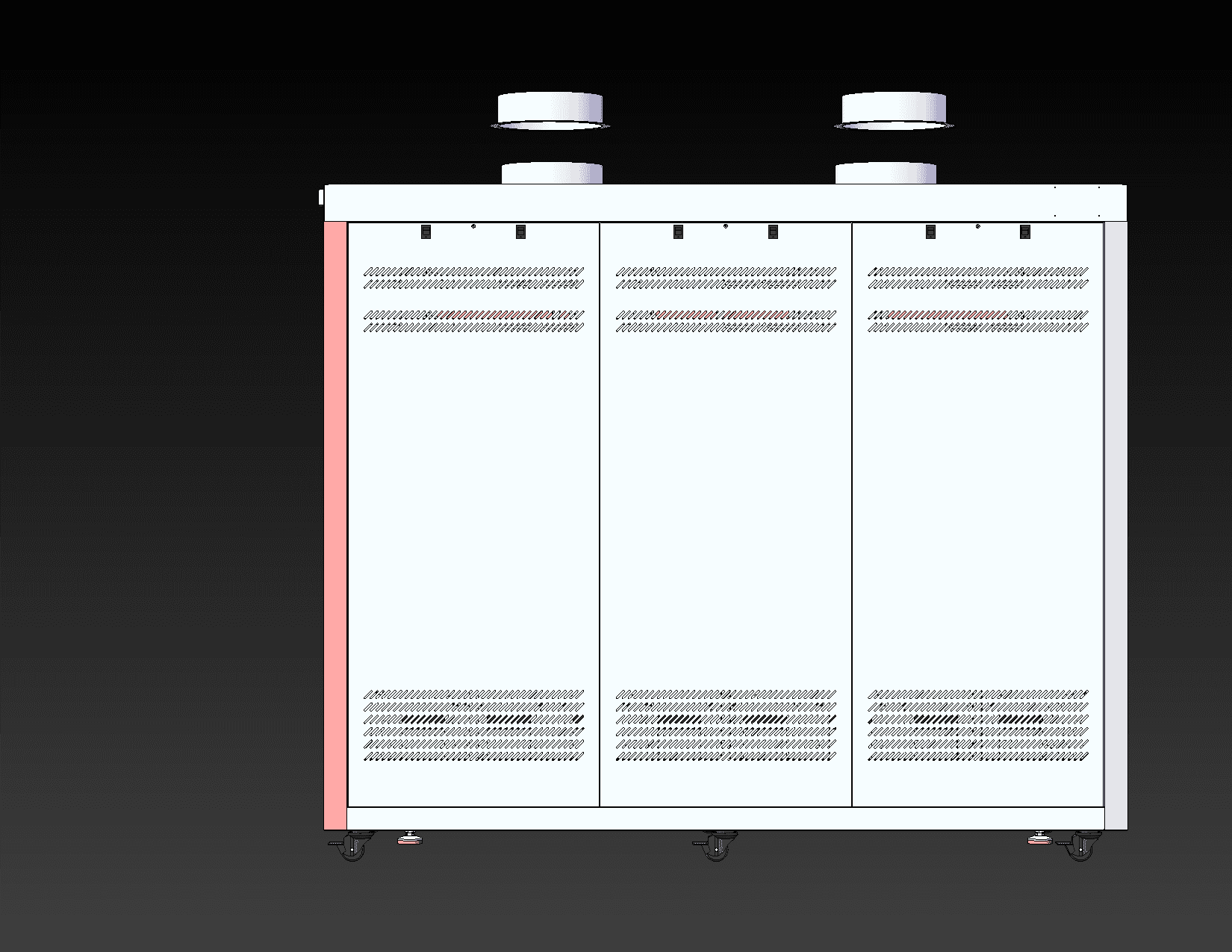

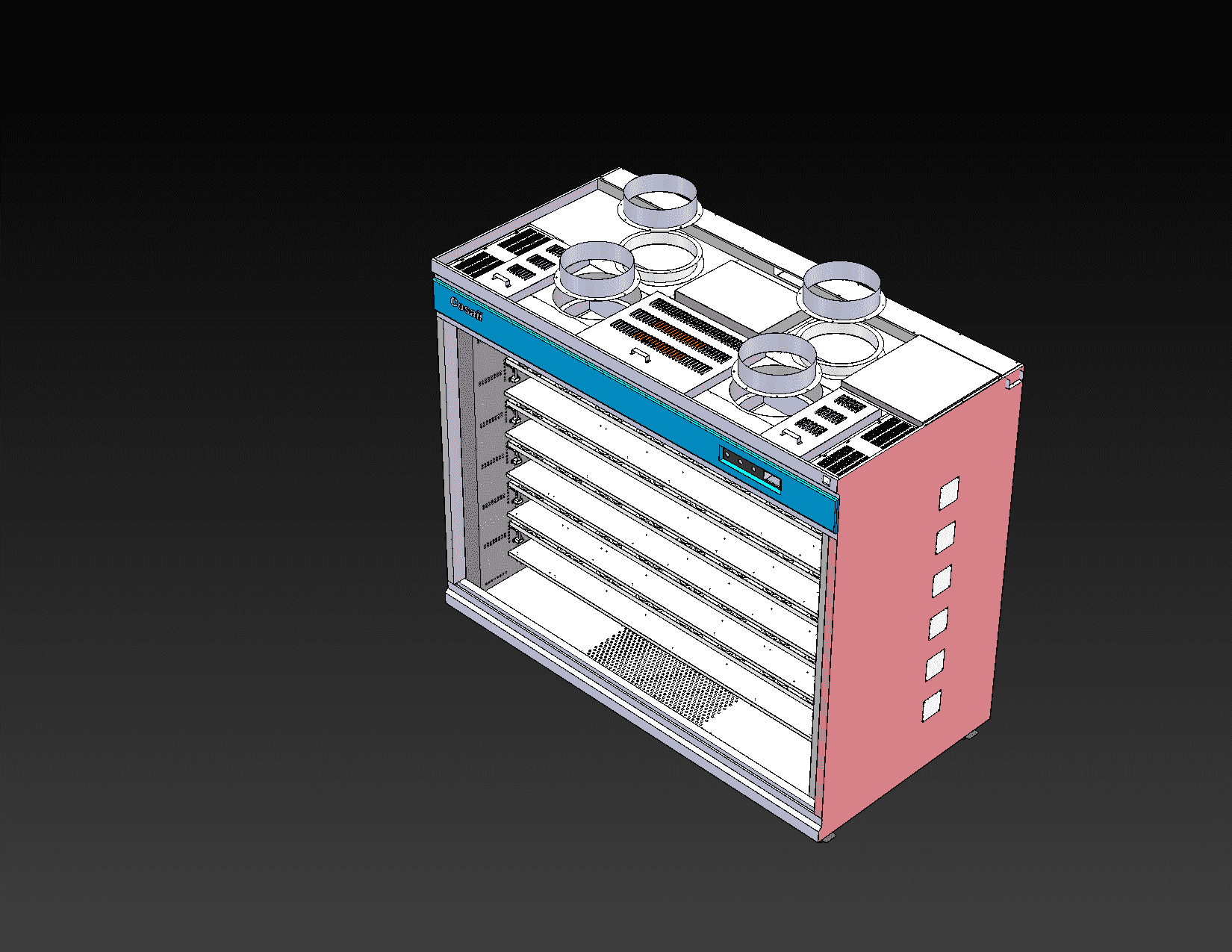

The main visuals prioritize 3D models or structural renders so buyers can quickly understand the cabinet form and layout.
Aging & Reliability Testing
Six-Layer Aging Cabinet
A large-format aging cabinet using six fixed welded shelves with an integrated divider structure, built for stable support and batch aging tests of large electronic assemblies or module-based products.
Key Features
- Six fixed welded shelves
- Integrated shelf and divider structure
- Bottom stainless dustproof mesh
- Adjustable fan mounting plate
- Movable stainless support rods
- Suitable for large equipment or module aging tests
Specifications
Technical Details
| Dimensions | 2600 x 1280 x 2200 mm (with casters) |
| Materials | Cold-rolled steel / epoxy board / acrylic / stainless mesh / aluminum sheet |
| Surface Finish | Gloss ripple powder coating, dual-color finish |
| Protection | Bottom 4-mesh stainless dust screen with metal edge wrapping |
| Structure | Six-layer fixed welded shelf structure |
| Installation | Heavy-duty casters, leveling feet, adjustable fan plate |
| Application | Large electronic equipment or module aging tests |
Process Reference
Representative Real-World Photos
These photos show similar cabinet workmanship, coating, assembly, and delivery quality. They are reference images and may not map 1:1 to the current 3D model.
