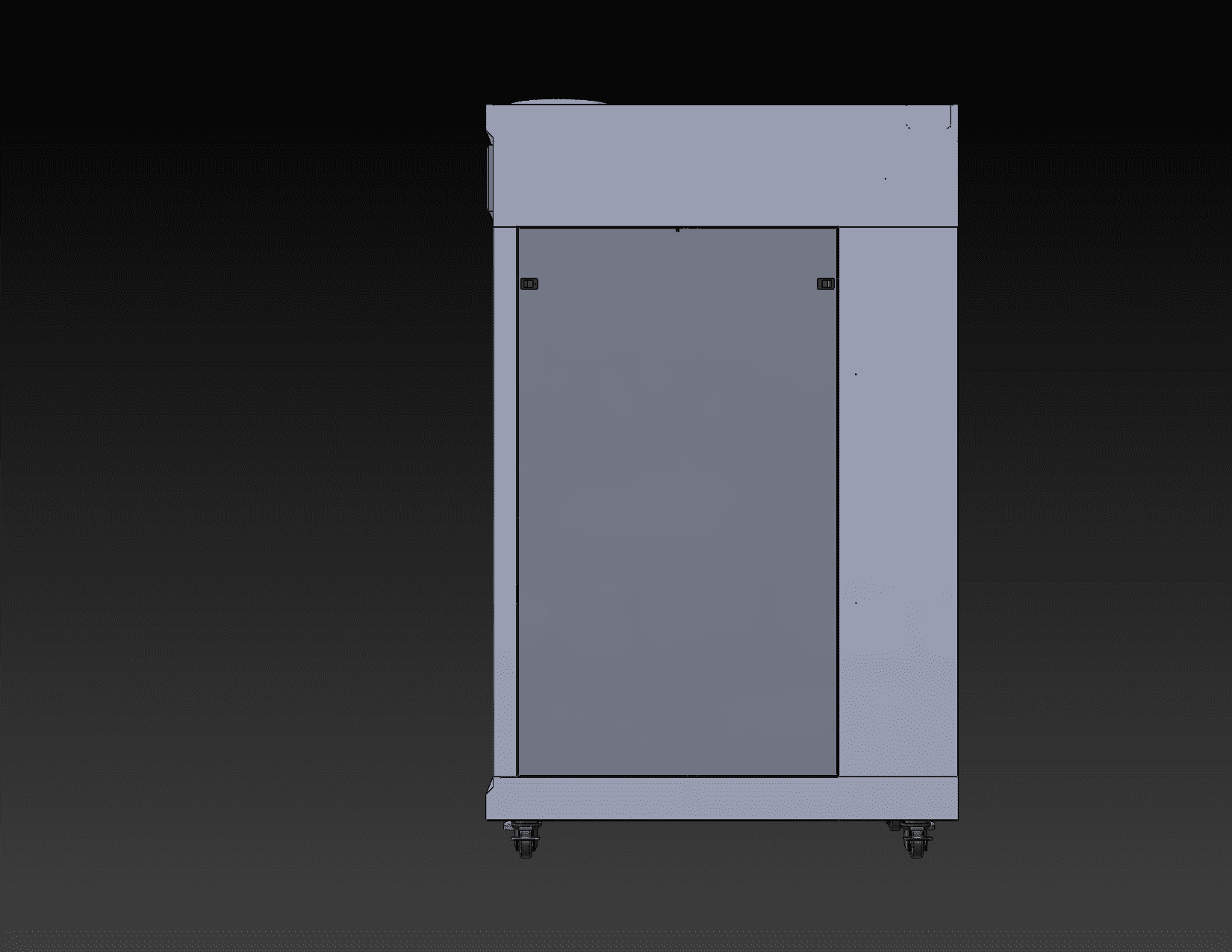

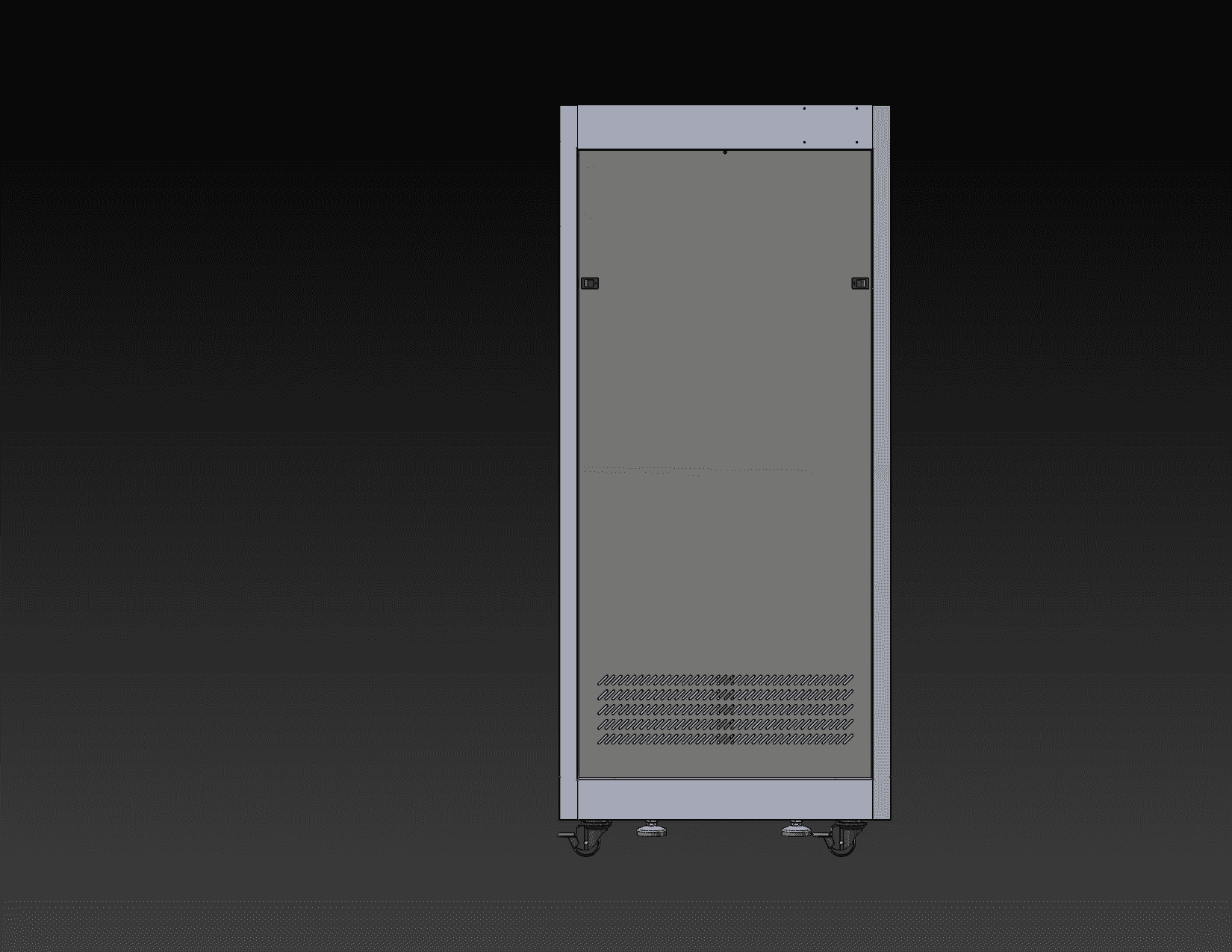

The main visuals prioritize 3D models or structural renders so buyers can quickly understand the cabinet form and layout.
Power Distribution & Control
Industrial Control Cabinet
A control-system cabinet designed for industrial and electrical control applications, featuring a top-exhaust structure, reinforced top cover, and reserved areas for meters, fans, cable entries, and operator controls.
Key Features
- Top exhaust structure with reinforced cover
- Integrated keyboard and operation zone
- Adjustable rear-door structure
- Movable panels and switch mounting plates
- Supports multiple hole and cutout revisions
- Suitable for industrial control system enclosures
Specifications
Technical Details
| Dimensions | 900 x 1280 x 2050 mm (with casters) |
| Materials | Cold-rolled steel / acrylic |
| Surface Finish | Gloss ripple powder coating, dual-color finish |
| Structure | Top-exhaust control cabinet structure |
| Installation | Movable plates, handles, magnetic fixtures, heavy-duty casters |
| Customization | Meter holes, fan holes, cable holes, and top round holes |
| Application | Power and industrial control system enclosures |
Process Reference

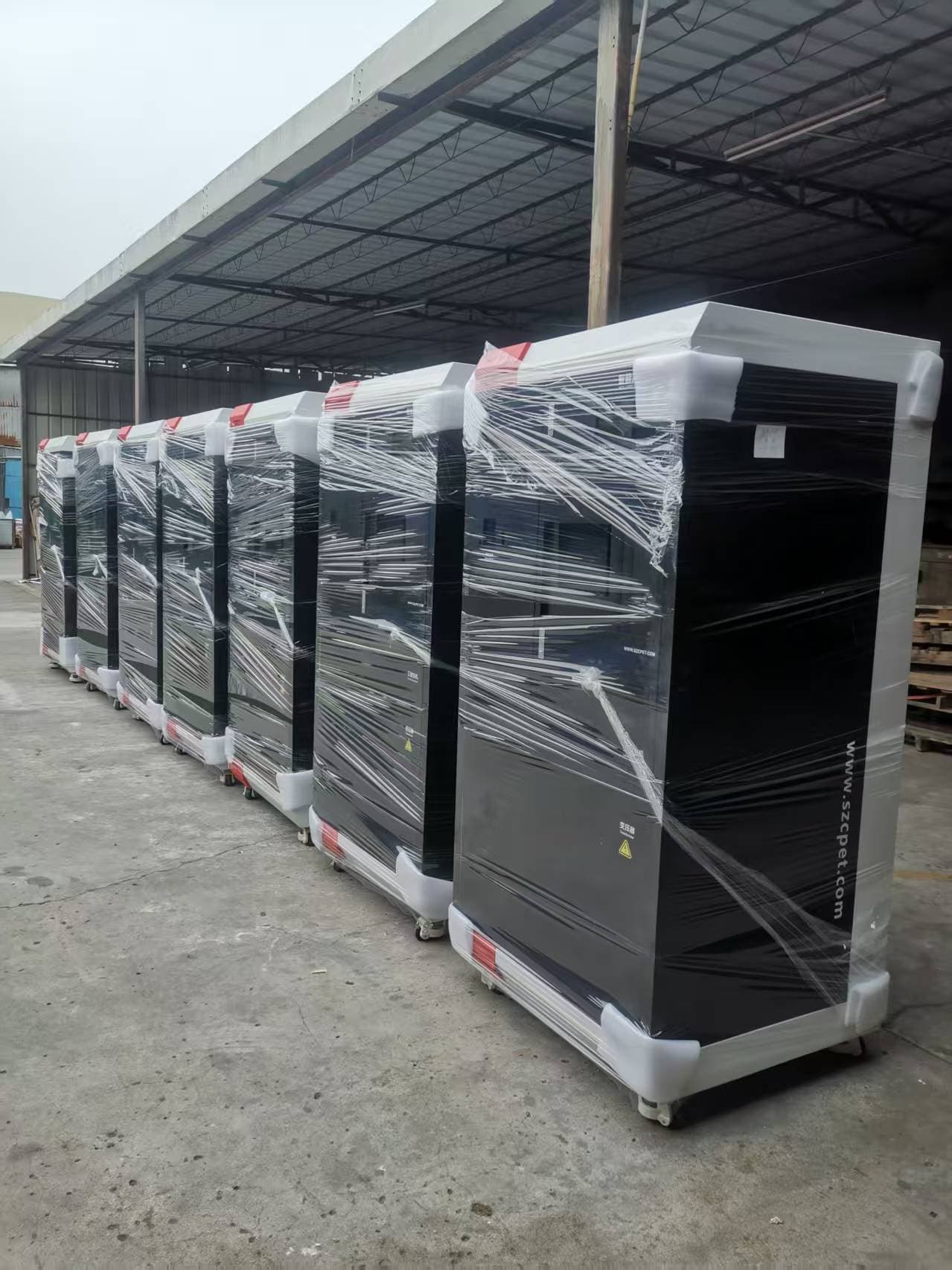

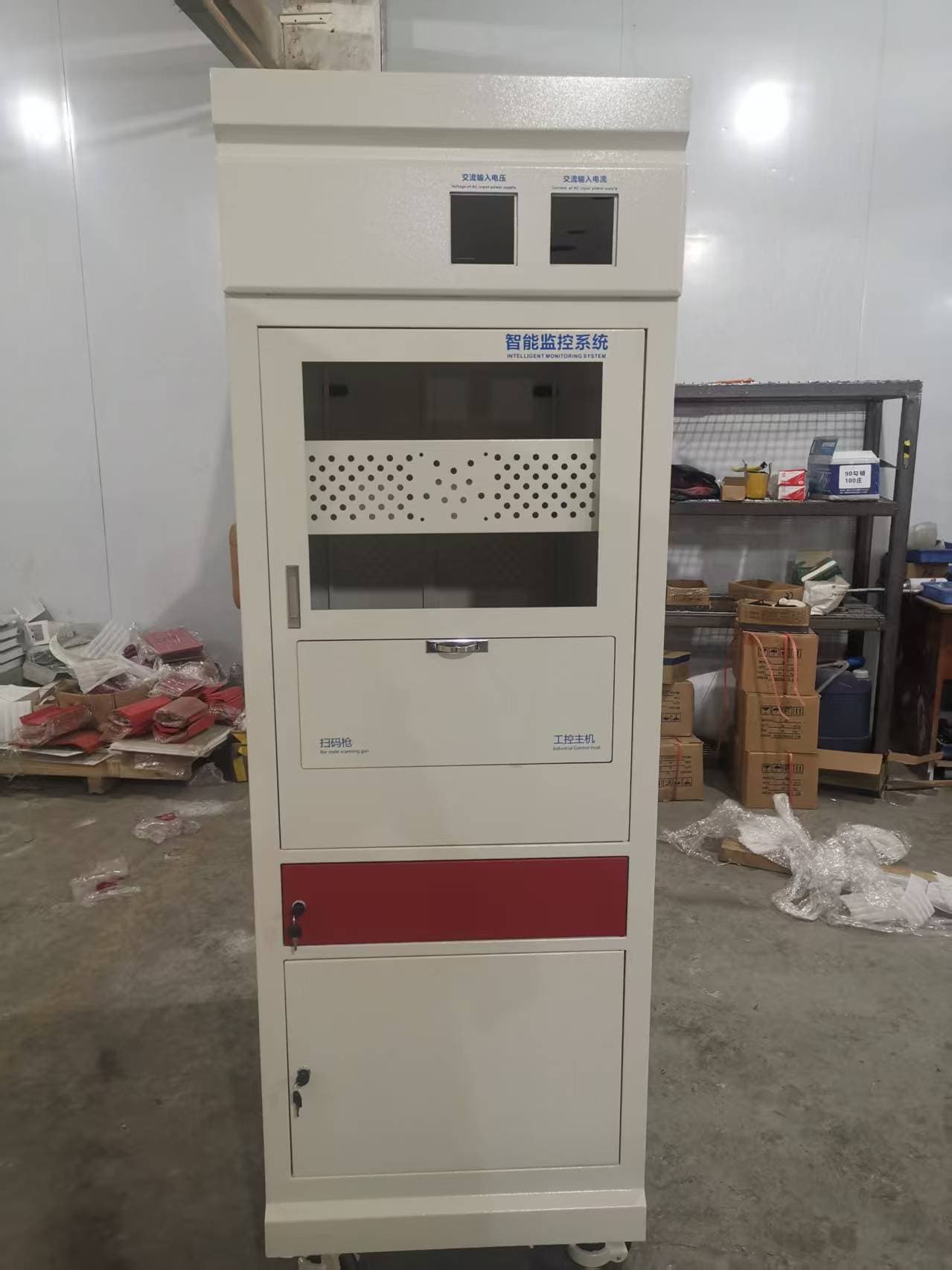

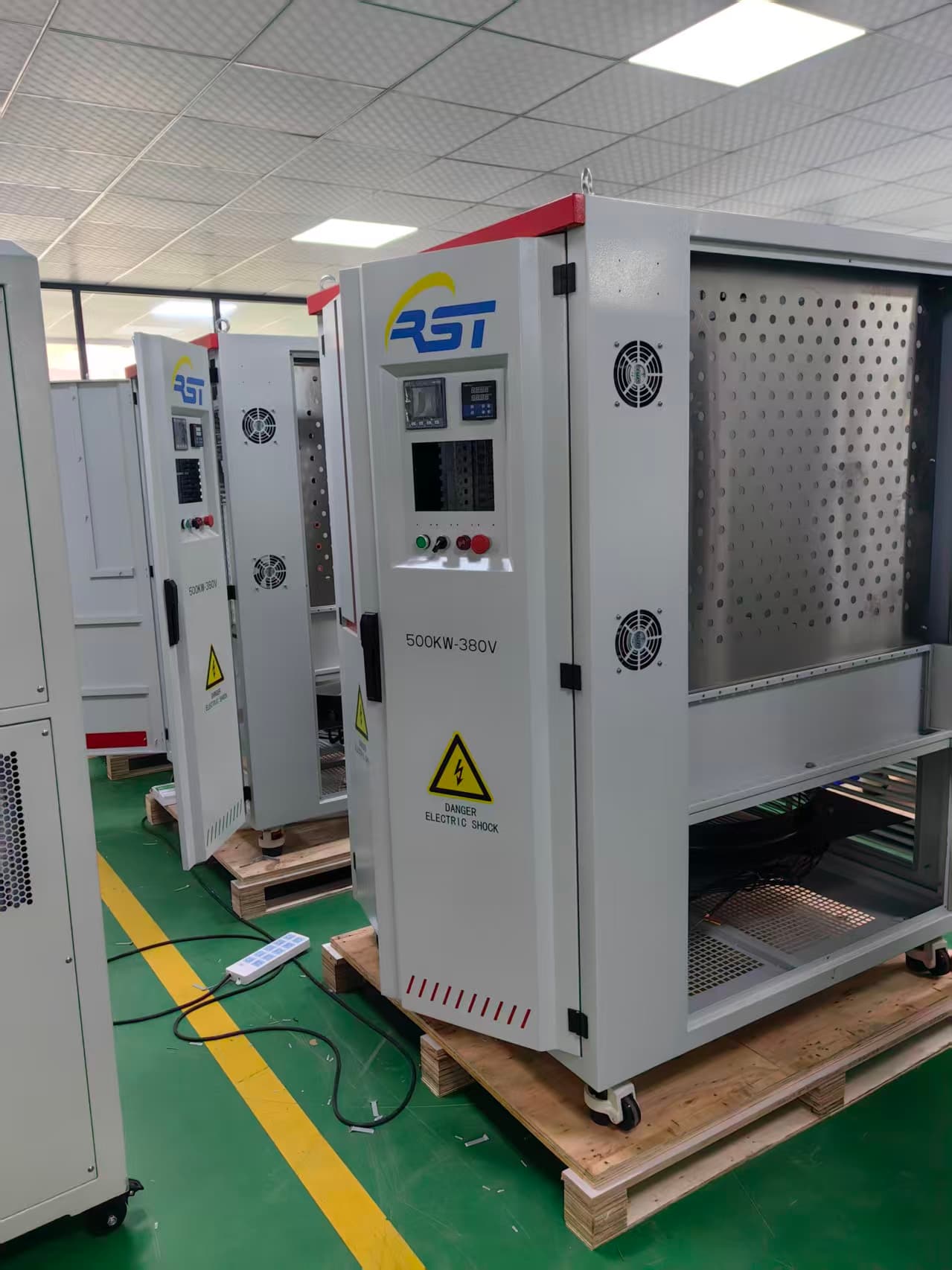

Representative Real-World Photos
These photos show similar cabinet workmanship, coating, assembly, and delivery quality. They are reference images and may not map 1:1 to the current 3D model.
